Our flagship product. Standard 4×8 ft HDPE ground protection mats in 1/2 inch and 3/4 inch thickness, with anti-slip cleat pattern on both sides and integrated handle holes. Reusable across hundreds of deployment cycles. Used by wind energy contractors, utility line crews, oil & gas operators, and event production companies worldwide.
Real factory FOB Qingdao prices. Quantity-tiered discounts available. Custom dimensions & colors on request.
| Product | Price (FOB) | MOQ | Material | Image |
|---|---|---|---|---|
| 12.7mm Thick Heavy Equipment HDPE Temporary Road Mat 4x8 HDPE Ground Protection Track Mat | $2.10 - $2.57 | 1 piece | HDPE | |
| Temporary Ground Cover Mats Protection Ground Mat Swamp Excavator Mats | $2.10 - $2.57 | 1 kilogram | HDPE |  |

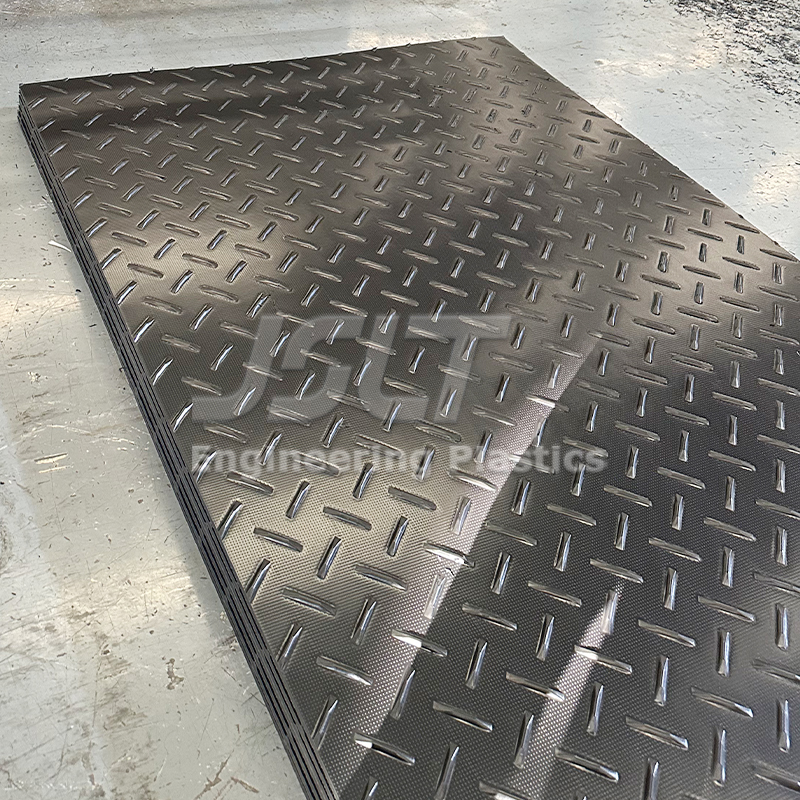

| Recyclable PE UHMW Ground Protection Mat HDPE Temporary Road Panels | $2.10 - $2.57 | 1 piece | UHMWPE/HDPE |  |
| HDPE Extruded Ground Protection Mat with Logo Customized Size | $2.10 - $2.57 | 50 pieces | HDPE |  |
| High Strength Yellow Black Anti-Slip Outrigger Pads Crane Leg Support | $5.00 - $50.00 | 1 piece | UHMWPE/HDPE |  |
| HDPE Material Ground Protection Mats Temporary Road Construction Site | $2.10 - $2.57 | 1 kilogram | HDPE |  |
| Material | 100% virgin HDPE (also recycled-content HDPE on request) |
|---|---|
| Standard Size | 4 × 8 ft (1220 × 2440 mm) |
| Thickness | 1/2 inch (12.7 mm) standard; 3/4 inch (19 mm) heavy duty |
| Weight per Mat | ~36 kg (1/2") / ~54 kg (3/4") |
| Load Distribution | Up to 80-ton tracked crane (3/4" mats laid in pattern) |
| Surface Pattern | Diamond cleat both sides, anti-slip when wet |
| Color | Black (UV stabilized) standard; safety yellow / orange / green on request |
| Connection | Integrated handle holes; optional steel link plates for mat-to-mat |
| Service Life | 5 – 10 years with normal handling |
| Stacking | 20 mats per pallet stack; ~360 mats per 40 HC FCL |
Wind energy contractor used 480 HDPE mats to create a 1.2 km temporary access road plus crane pads.
Read case →Electrical utility company standardized on HDPE mats for off-road line maintenance after right-of-way damage claims.
Read case →Oil & gas operator built an entire frac wellsite pad on HDPE mats — saved permanent gravel cost.
Read case →Festival production company uses HDPE mats to protect grass venues during multi-day concerts.
Read case →Typical pattern is 3 mats wide × 4 mats long under each track for tracked cranes, 2×2 under each outrigger for hydraulic cranes. Use 3/4 inch mats for 80-ton; 1/2 inch is sufficient for cranes up to ~25 tons. Soil bearing capacity matters — soft clay needs more mat coverage than firm sand.
Yes — we supply optional steel link plates that bolt through the mat handle holes, creating a continuous connected pathway. Not required for crane outrigger applications but useful for vehicle access roads.
Mats are stacked vertically on edge in 20-mat blocks, then strapped. We palletize using heat-treated wood with corner protection. Full container load is ~17 tons of mats, well within container weight limits.
Virgin HDPE has the longest service life (10+ years) and best UV stability. Recycled-content HDPE is ~25 % cheaper but may have slightly shorter life and color variation. For long-term rental fleet operators we recommend virgin; for one-project use recycled is a reasonable choice.
20-25 days from PO confirmation, FOB Qingdao. Larger orders (~360 mats / 40HC FCL) ship in 25-30 days.
Tell us about your ground protection mats project. Our engineering team responds within 12 hours with technical specs and FOB pricing.
